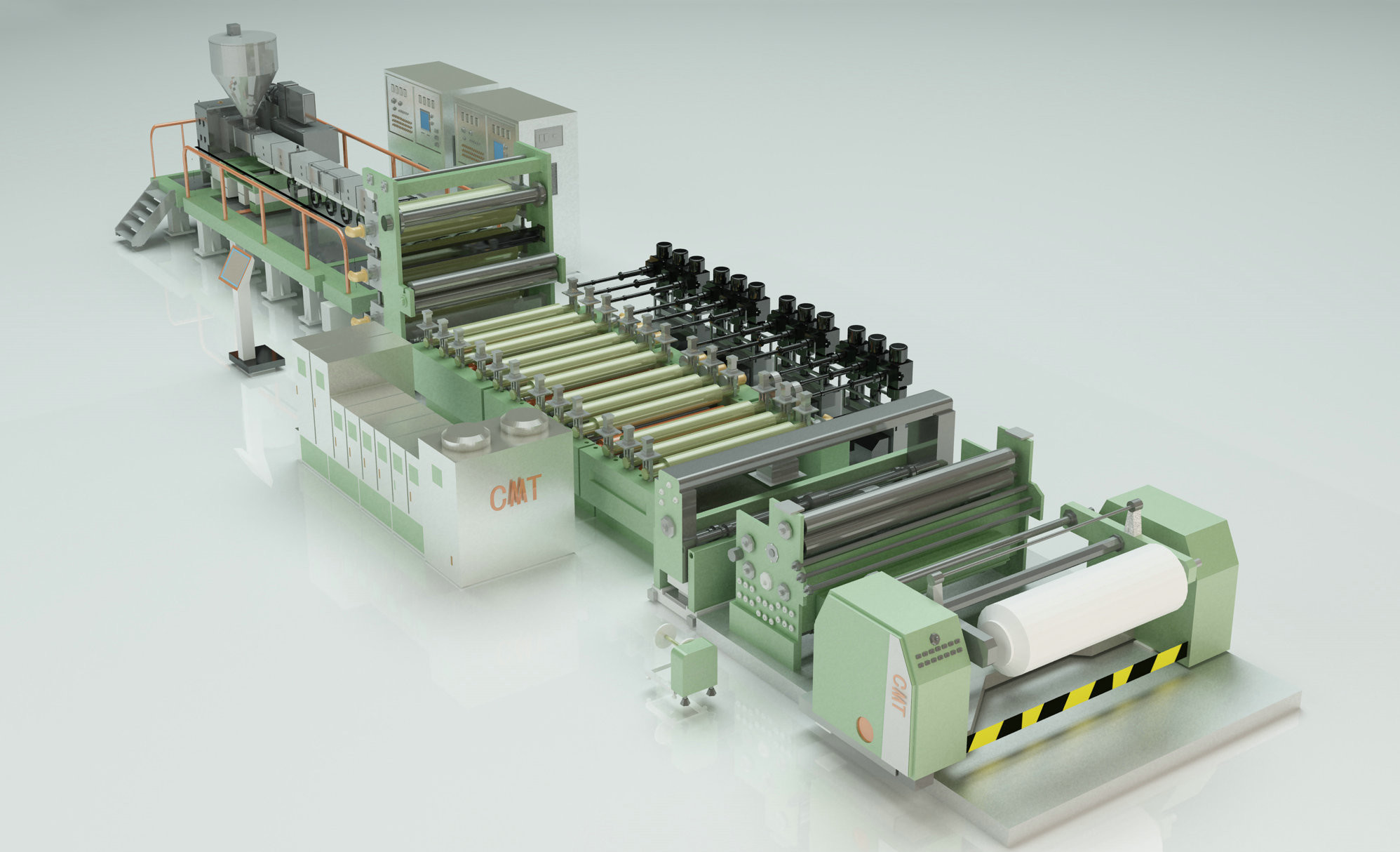

Stone Rock Synthetic Paper Sheet Production Line Making Machine

Production Line
I. Outline
1.Usage condition 380V/3P/50Hz
2.Suitable material Pe+CaCO3
3.Finished sheet specification L=1400mm, T=0.15-0.4mm
4.Extrusion capacity 550Kg/h

II. Equipments:
1. High torque single screw extruder
2. Screen changer (hydraulic station included)
3. T-Die
4. three roll calander and temperature control system
5. preheating rollers group
6. set MDO longitudinal stretching system
7. cooling and back fire system
8. cooling system and edge cut
9. thickness gauge
10.set rotational winder with double position
11.electrical cabinet
12.other auxiliary machine
13.spare parts

III. technical details
1. High torque single screw extruder Specification
Material 38CrMoAIA
nitrided thickness 0.5-0.7mm
screw hardness HV≥740
barrel hardness HV≥940
barrel heating method ceramic heating
Screw structure Suitable for olefin polymer
Heating zone 7 zones
heating power around 60KW
cooling methods fan cooling
fan power 0.55KW
barrel cover stainless steel
temperature gauge hermocouple
Driving system
Motor type DC motor
Motor power 220KW
gear type helical gear
heat treatment grinded gear
Connection type direct connection( use elastic coupling )
Rotate speed 0-93rpm
venting system
vacuum pump water ring
Power 11KW
Vacuum tank Double tank, interchangeable
Hopper Stainless steel

2. Screen Changer
Motor Hydraulic station equipped, max pressure 16Mpa
Screen type double column double position
Acceptable melt pressure ≤40Mpa
Heating method Stainless steel heating stick

FOR MORE INFORMATION, DO NOT HESITATE TO CONTACT WITH US.
