Automatic Medical Disposable Face Mask Making Machine/Production Line

1.1 Layout

This machine connected for Face mask production,Including cloth feeding station, forming and welding , transfer station ,ear wires welding and packing station.

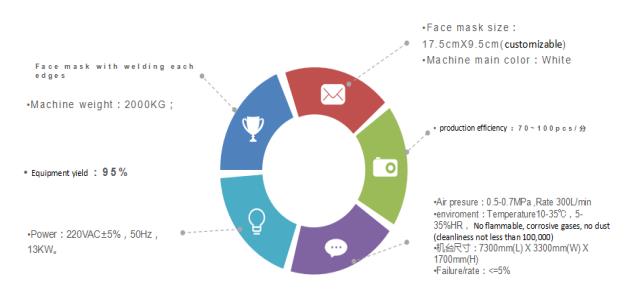

1.2 System parameter

1.3 All composition

1.4 Equipment introduction
a. Each wheel has the tension control by one screw
b.4 reels clothes is allowed
c.The nose wire for forming going fixed inside of the mask
d.fix the clothes on the axis and make the clothes on same middle line by Micro-adjustment

1.4.1

Structure declaration :
(1)The CAM cutter control mechanism realizes the function of cutting off the nose wire with single power and fixed length.
(2)The straightening mechanism guarantees the consistency of the nose iron wire.

1.4.2 Folding the clothes part/Forming
a.The structure for mask folding mold, material after folding guide wheel and then into the fold, realize the respirator three fold.
b.According to different needs of customers can implement custom folding folding way.

1.4.3
The ultrasonic welding main piece with the ultrasonic welding under this part.

1.4.4
Cutting of the main piece,the special knife fix on the roller.

1.4.5
Ultrasonic welding installed under the roller(keeping the ultrasonic calm down is important for lifetime)

1.4.6 Welding ear wires station

1.4.7 Welding and rotary plate
Working procedure:
a.Turnplate for pull the wire
b.Cut the wire /separate the wire
c.Whole down for welding
d.Open the gripper
e.Push the wire out of the plate
f.reset

1.4.8. Packing station
a.The station is conveyor belt for simple count and unit gather
b.Each unit pieces the belt move forward a timing which we defined on the touch monitor!
