Effective Drum Chipper With Belt Conveyor For PB / MDF / OSB

1. Drum chipper is an ideal equipment for producing good chips, and it's widely used in paper factories, particle board plants, MDF plants, biomass power plants and etc. It can cut materials of certain diameters into chips, such as wood logs, branches, bark, veneers, bamboo, various stalks/straws and etc, and the output sizes are even and uniform. On the other hand, drum chipper has advanced and strong structure, which enables a stable quality and multi-function and easy maintainance.

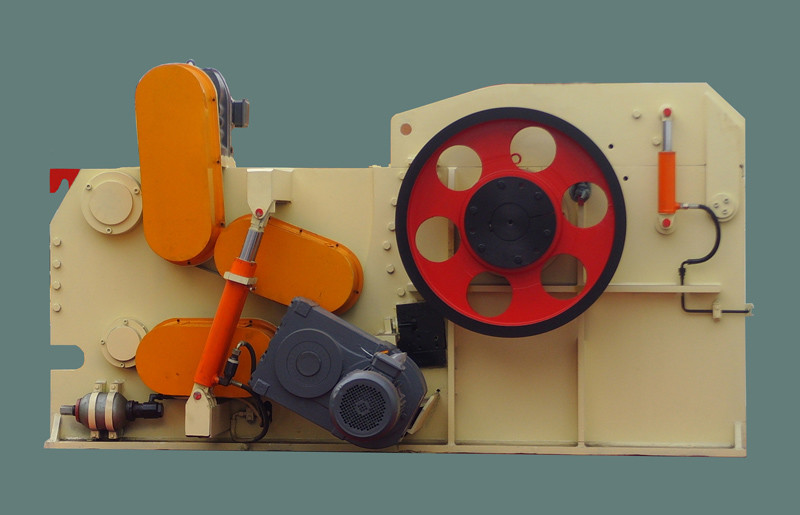

2. The chipper consists of machine frame, knife rotor assembly, upper feed rollers, lower feed rollers, belt conveyor unit, hydraulic and electrical system,with the strong structure, easily operation for chopping the wood,bamboo and other non-fiber stems.

3. This series of drum chippers are structurally compact, simple to operate, high throughput, wide adaptability of raw materials, produces high chips quality, reliable and safe, easy to maintain, and are the most advanced chippers currently available in China.

4.This series of drum chippers are suitable for the range of 3-130 cubic meters/hour. The standard sizes available are convenient for customers to select in accordance with the production requirement.

1. The machine base is a welding structure with high strength steel plate serving as a support of the whole machine.

2. The knives (2,3 or 4) are installed to the roller via clamping plate by special knife bolts. The upper feed rollers assembly, with the help of hydraulic system, can float up and down over the material to be cut within certain range, according to the thickness of the material. Wood chips are discharged from the bottom of the machine after passing through screen holes, oversized chips will be re-chipped in the machine.

3. Hydraulic system: the oil pump supplies the cylinder with pressure oil, and open the drum cover for easy knife change; and lift the upper feed roller to facilitate the adjustment of the clearance between rotor knives and bed knives, and ease the changing of comb plate.

1. Adopted to a variety of raw materials: Our drum chipper has a wide range of adoptability in cutting wood and non-wood materials

2. Strict quality control in entire process, which start from design, manufacture to after sale service: Decades of experience to manufacture chipper, and strict industry standard. Selected raw materials, Strict quality control to the outsource fittings. Electric elements, hydraulic element are high quality brands at home and abroad. Large precise equipment ensures us manufacturing quality chipper.

3. Lower operating cost to the users: The design ensures the chipper can be faster and easier to maintenance, reduce operating cost.

Suzhou CMT, an international technology-oriented engineering group company, specialized in Turn-key Projects, providing services of project consulting, engineering design, construction supervision, project management and general contracting.

We have strong technical support. There are more than 1000 personnel in CMT, of which 60% are professional technicians. Around 50 are Middle and senior engineer and over 80 personnel own professional registered certificates.

The head office is located in Suzhou, equipped with more than 6 manufacturing bases all over China, spreading from Shanghai, Jiangsu, Zhejiang, Shandong, Shanxi, Hebei. We are involved in several aspects, including heavy industry, light industry, environmental protection projects, etc.

After all these years, our technology and service have been exported to more than 50 countries in the world, especially in Asia, Middle East, Africa and South America, which earns us a great reputation. We adhere to the principle of "Quality first, service-orientation" and try to provide the best service. We warmly welcome you to our company and create brilliance together!
