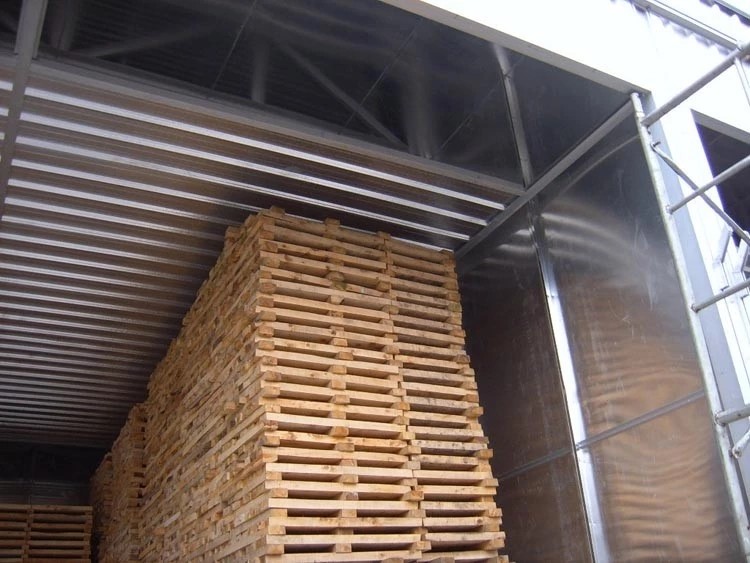

Efficient 100 Cubic Meter Wood Timber Drying Kiln Oven Equipment

Main Features
1) Simple structure ,easy in installation and maintainance.
2) Adopting advanced world famous brand components. Control system, Italy brand. Valve, German brand, Damper actuator, Siemens brand
3) Running in a high automatization and intellectualization,no pollution

Heating System

The heating system is composed of electromagnetic heating valve, bimetallic
The heating system can meet different drying requirements from medium-low temperature schedule to medium-high temperature schedule with its strong heating power.

Spray System

The spray system is composed of spraying valve, high-pressure pump, stainless steel spray pipe.
The spray pipe is made by stainless steel so that the carbon steel pipe's drawbacks of heavy corrosion and short service life can be effectively avoided.

Air Circulating System

The optimum model of kiln is adopted with circulating fans located on the upper side of the kiln. The No. 8 fan is aluminum molded with big air volume and high efficiency. The electrical power for a single fan is only 3.0Kw so that the energy consuming and the drying cost can be substantially lowered.
The ceiling is built using LF21 anti-corrosion corrugated aluminum panel that its strength, stiffness and corrosion resistance are substantially improved.

Venting System

To realize the fully modulating operation, the aluminum air dampers are controlled by the vents actuator via the driving mechanism and the vents actuator in turn is controlled by the main control system.

Kiln Door System

The popular one-piece sliding aluminum alloy doors are furnished. The door has a welded steel framework with a double insulation using polystyrene. The door is sealed with custom-tailored special-shaped rubber tube which is heat-resisting, anti-aging and highly airtight.
Besides sliding on the top track the door carrier is also supported by a floor rail, which ensures it operate easily, smoothly and steadily.

If you are interested, do not hesitate to contact me.
REGARDS!

Suzhou CMT, an international technology-oriented engineering group company, specialized in Turn-key Projects, providing services of project consulting, engineering design, construction supervision, project management and general contracting.

We have strong technical support. There are more than 1000 personnel in CMT, of which 60% are professional technicians. Around 50 are Middle and senior engineer and over 80 personnel own professional registered certificates.

The head office is located in Suzhou, equipped with more than 6 manufacturing bases all over China, spreading from Shanghai, Jiangsu, Zhejiang, Shandong, Shanxi, Hebei. We are involved in several aspects, including heavy industry, light industry, environmental protection projects, etc.

After all these years, our technology and service have been exported to more than 50 countries in the world, especially in Asia, Middle East, Africa and South America, which earns us a great reputation. We adhere to the principle of "Quality first, service-orientation" and try to provide the best service. We warmly welcome you to our company and create brilliance together!
