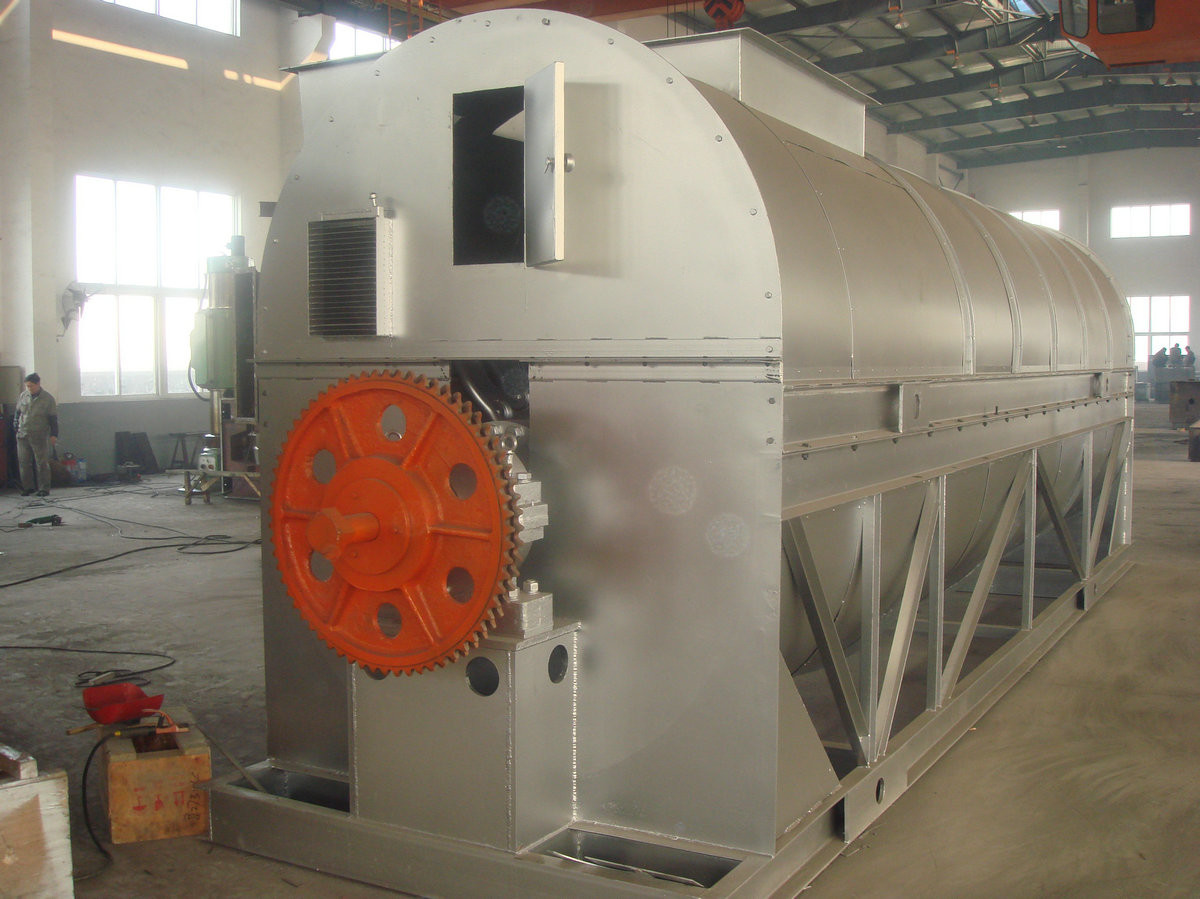

Efficient 3 Ton/Hour Rotor Dryer For Particle Board Production Line

Working principle of rotor dryer: the pipe circuit on its rotor connected with the boiler, which forms a circulating system, and the media carries heat from the boiler into the pipe circuit of the rotor, which will radiate inside the dryer, and then evaporate the moisture from fibers. As the fibers do not get contacted directly with heat media, it avoid fire accident.

Rotor dryer is widely used in particle board industry and other fiber drying industry, because of its mature design, stable quality and efficient capability. According to the realities of different customers, the rotor dryer could be different sizes, and its heating medium could be thermal oil or steam.

Main parameter

Rotor diameter: 2740mm

Rotate speed: 2-8 r/min

Initial moisture content of flake: ≤80%

Final moisture content: ≤3%

Production capacity (absolute dry): 1400-1800 kg/hour

Power of main motor: 22kw

Pre-heating fan: 5.5kw

Drying fan: 11kw

Heating medium: thermal oil

If you are interested, do not hesitate to contact me.
REGARDS!

Suzhou CMT, an international technology-oriented engineering group company, specialized in Turn-key Projects, providing services of project consulting, engineering design, construction supervision, project management and general contracting.

We have strong technical support. There are more than 1000 personnel in CMT, of which 60% are professional technicians. Around 50 are Middle and senior engineer and over 80 personnel own professional registered certificates.

The head office is located in Suzhou, equipped with more than 6 manufacturing bases all over China, spreading from Shanghai, Jiangsu, Zhejiang, Shandong, Shanxi, Hebei. We are involved in several aspects, including heavy industry, light industry, environmental protection projects, etc.

After all these years, our technology and service have been exported to more than 50 countries in the world, especially in Asia, Middle East, Africa and South America, which earns us a great reputation. We adhere to the principle of "Quality first, service-orientation" and try to provide the best service. We warmly welcome you to our company and create brilliance together!
